Big Bus and Truck Spraying Booth

Big Bus and Truck Spraying Booth

WLD20000 Bus spray booth has 20m internal length,suitable big truck and bus,ship,train etc. We exported to Saudi Arabia,UAE,Jordan,Japan etc.

Send Inquiry
Product Details

12m,15m,18m,20m,22m...any sizes can be customized;

3D lift in the big spray booth is optional.

Air exhaust from two sides of spray room or pit are optional;

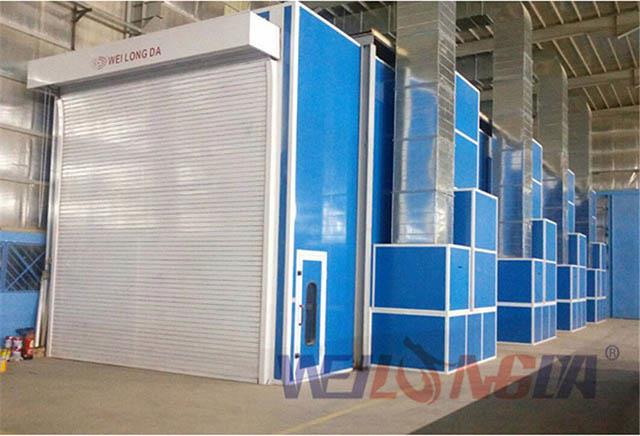

Drive through type door, rolling door and folding door are optional.

Air generation system on the top of spray room is optional.


WLD20000 High Quality Bus/Truck/Train Paint Spray Booth Specifications:

Configuration:

Wallboard: Sandwich style EPS (epispastics polystyrene) 75mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.

Door: 4 pcs of front doors with special rigid frame. Size: 4000(w) x 4800(h). 2 pc of emergency door.

Air Intake System (4sets): Each set consists of 2x4kw intake fan. Total 8 units of 4kw intake fan. BELIMO 20N electric damper.

Air Exhaust System (4set): Each set consists of 1x5.5kw exhaust fan. Total 4 units of 5.5kw exhaust fan. Multi-layer fiberglass filter. Exhaust air from basement or two sides of wallboard.

Heating System (4set): Each set consists of 1 unit Italy Riello G20 diesel burner 200000Kcal/h. Total 4 units of burners,800000Kcal/h.The heat exchanger is made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency.

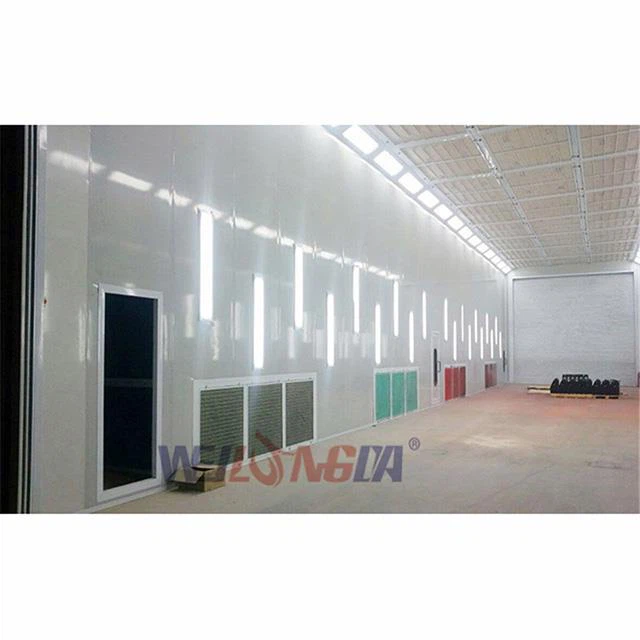

Lighting System: Ceiling light has 24units x 4pcs of 36w lamps. Side light has 31 unites x 2pcs of 36 w lamps. Total 158 pcs of

16W lamps. 900 Lux.

Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.

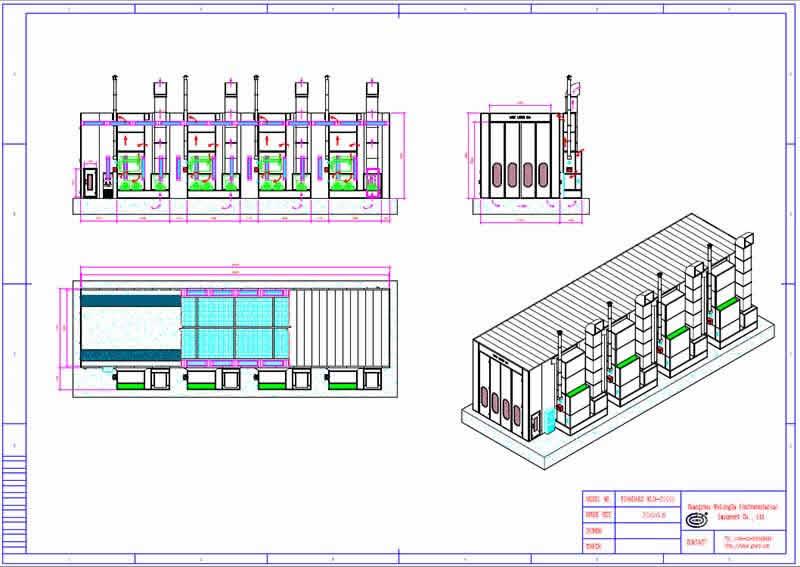

Drawings:

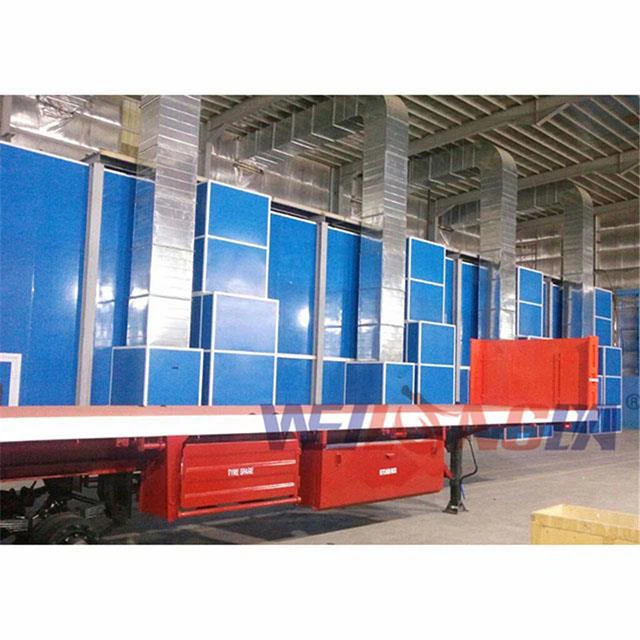

Customized WLD2000 Big Spray Booth Case In Saudi Arabia:





If you are interested in the big bus and truck spraying booth, please be free to wholesale the quality and durable equipment made in China with our factory. We are one of the leading and professional spray paint booth manufacturers and suppliers in China. We are always at your service.
