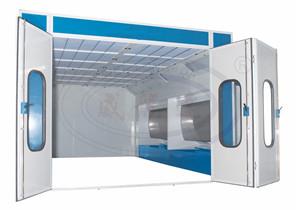

Furniture Water Curtain Spray Booth

Furniture Water Curtain Spray Booth

WLD-WS Industrial Water Curtain Furniture Paint Booth/Spray Booth Product Description: 1. With over 15 years experience in water curtain spray booth 2. Real big factory in China,covering over 15000 square meters 3. OEM service, can design according to customers requirement 4. The temperature can...

Send Inquiry
Product Details

WLD-WS Industrial Water Curtain Furniture Paint Booth/Spray Booth Product Description:

1. With over 15 years experience in water curtain spray booth

2. Real big factory in China,covering over 15000 square meters

3. OEM service, can design according to customers requirement

4. The temperature can reach over 200 degree

5. Welcome to visit our factory any time.


Water Curtain Spray Booth

Technical parameter

1. External size (mm):7000 x 5200 x 3000

2. Internal size (mm):6900 x 3900 x 2600

3. Water curtain cabinet size (mm): 3000 x 1200 x 1900 2 sets

4. Inside Booth Brightness (LUX) :71800

5. Air flow:24000m³/h


Main structure and parts

Consist of cabin, air circulation system and control system

Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Galvanized steel roof panel.

Door: 3 pcs of front doors with powder coating treatment frame. Size: 2400(w) x 2600(h). 1 pc of emergency door.

Lighting System: Ceiling light has 24 pcs of 36w lamps. 800 Lux.

Intake Air Circulation System: 2x4kw intake fan. Air Flow 24000 m3/h. Powder coated cabinets.

Exhaust Air Circulation System: adopts water curtain filter treatment device. Structure characteristics: Two sets of water curtain painting cabinet in the booth. Water pool adopts 3mm welded steel plate. Air circulation boards adopt 1.5mm thickness steel plate; Water curtain board is stainless steel, each water curtain painting cabinet equips 1 x 3kw pipe type fan for exhausting.1 set of 5.5kw pump for water supply. Water can be recycling use.

Control system: Adopts famous domestic components, Equoip with over load & shortcircuit protected, safe and reliable.


If you are interested in the furniture water curtain spray booth, please be free to wholesale the quality and durable equipment made in China with our factory. We are one of the leading and professional spray paint booth manufacturers and suppliers in China. We are always at your service.
