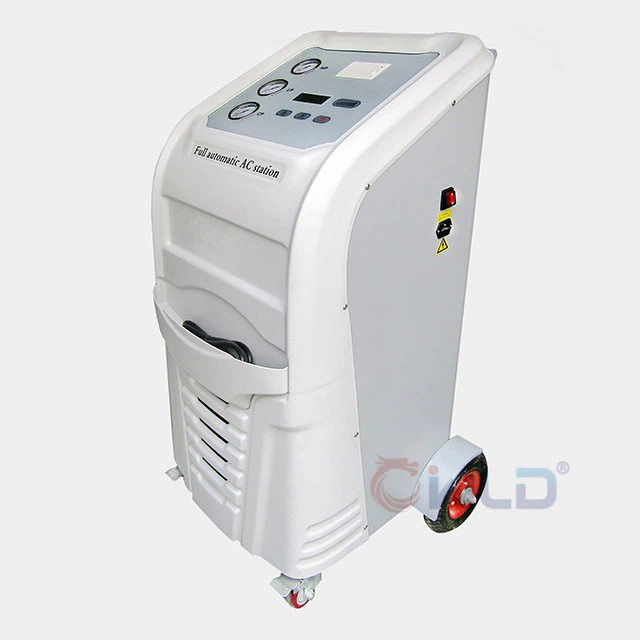

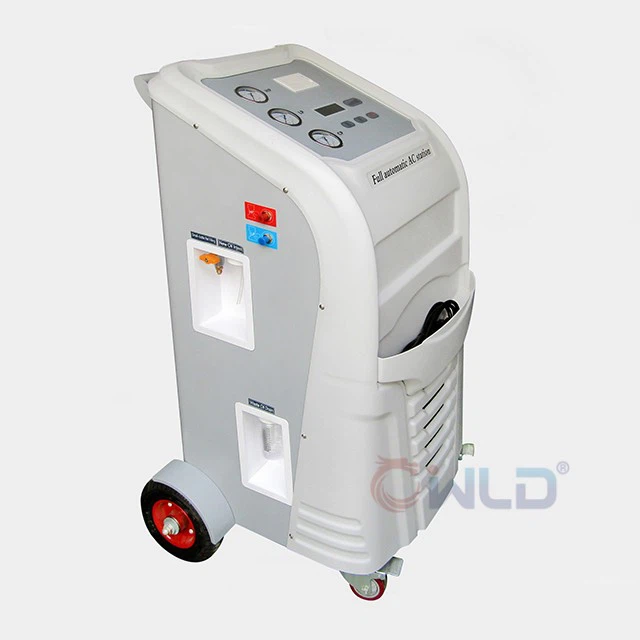

WLD-S600 Fully Automatic A/C Refrigerant Recovery & Charging Machine

Type of Refrigerant: R134a

Voltage: 220V±10%,50/60Hz

*Working temperaature:10/49°C(50/120℉)

*Service Procedure: Fully automatic or manual

*Vacuum pump: double stage 2L pump

*Compressor:12CC High pressure

*Recovery cylinder:10kg

*Recovery rate:97%,stop at 0 bar automatically

*Vapor refrigerant recovery speed:350g/min

*Liquid refrigerant recovery speed:250g/min

*Vacuum speed: 120Liter/min

*Super filter drier :600ml

*New/old oil bottle capacity：200ml

*Max work pressure:17.5bar

*Couplers:R134a Manual

*Printer: Standard Equipment  *Hoses: 200cm

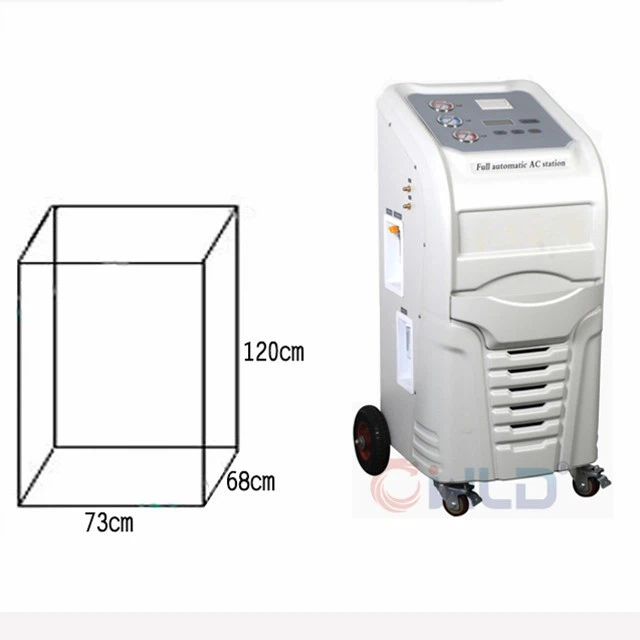

*Dimension(cm):Hard Carton: 71x64x119=0.55cbm

  Plywood: 74x74x131cm=0.720cbm

*G.Weigh: Carton:95kg / plywood:100kg

Main funtions:

*Recovey/Recycling

*Vacuum

*Refill new oil

*Recharge

*Drain used oil automatically.

*Full automatic mode

*with touch screen

*Recovey/Recycling       *Vacuum        *Refill new oil         *Recharge

*Automatic oil injection.                     *Drain used oil automatically

*Wide LCD with touch screen.            *Hose coupler storage

*Condenser and cooling fan included.

*Specific interface for small container of coolant supply.

*High-precision electronic scale weighs the refrigerant filling and reclaiming.

*Its purification & filtration system efficiently ensures recovery of used refrigerant.

*With Heavy duty Danfoss compressor to make excellent efficient. It with thermal overload protection.Specially designed oil separator with sinter bronze filter inside for effcient oil separation from recoveryed refrigerant.

*It employs two stage high performance vacuum pump(VALUE).Throgh a dual stage vacuum pump(100-140lit/min),large 4mm orifice solenoid valveand 3/8'' vacuum hose.Silencing blocks on the vacuum pump keeps the running noise down.

*Solid Durable wheels with locking casters.
