8m Automotive Custom Spray Booth With Natural Gas Heating System

If you are interested in the 8m automotive custom spray booth with natural gas heating system, please be free to wholesale the quality and durable equipment made in China with our factory. We are one of the leading and professional spray paint booth manufacturers and suppliers in China. We are always at your service.

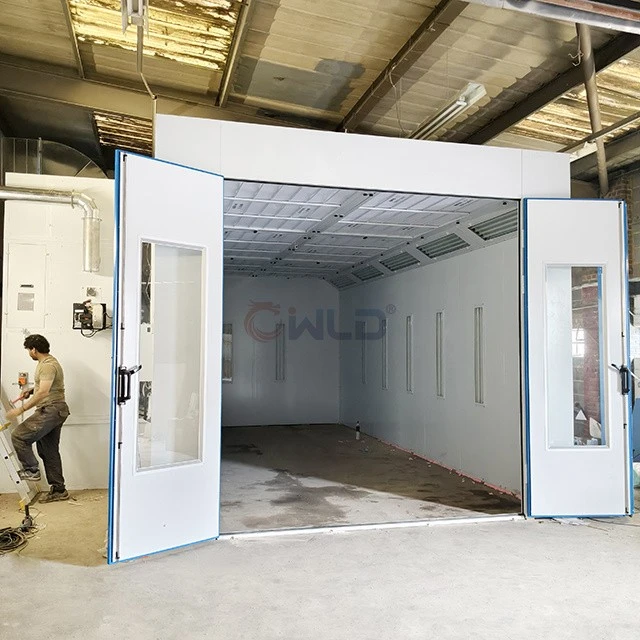

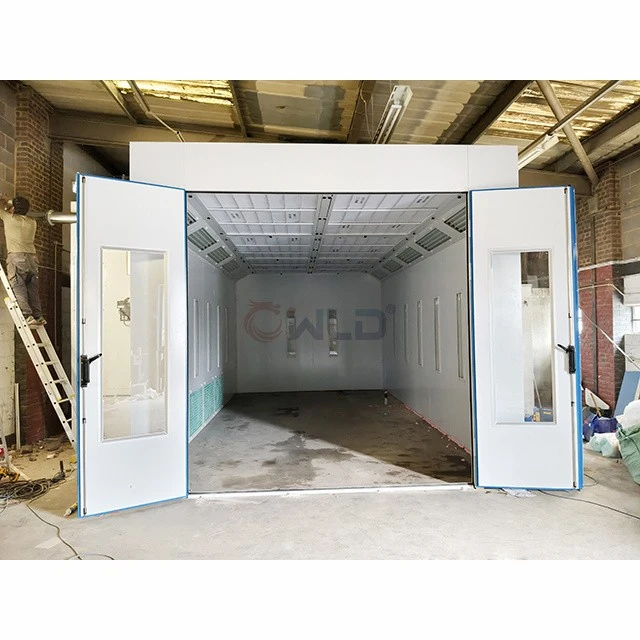

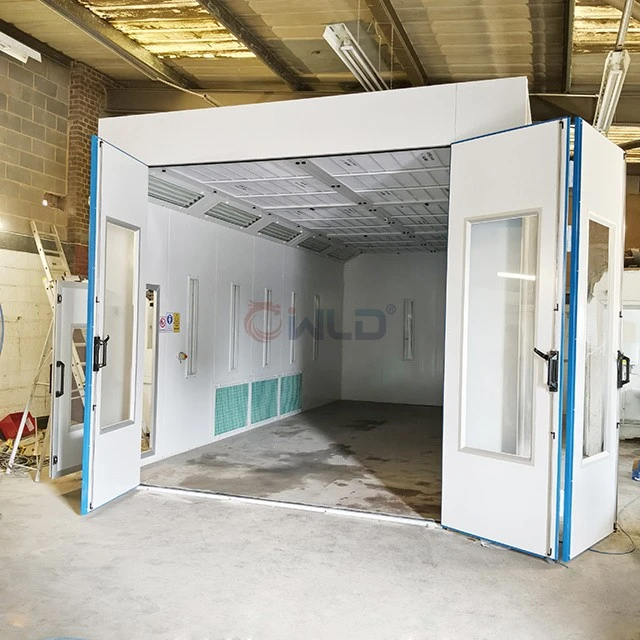

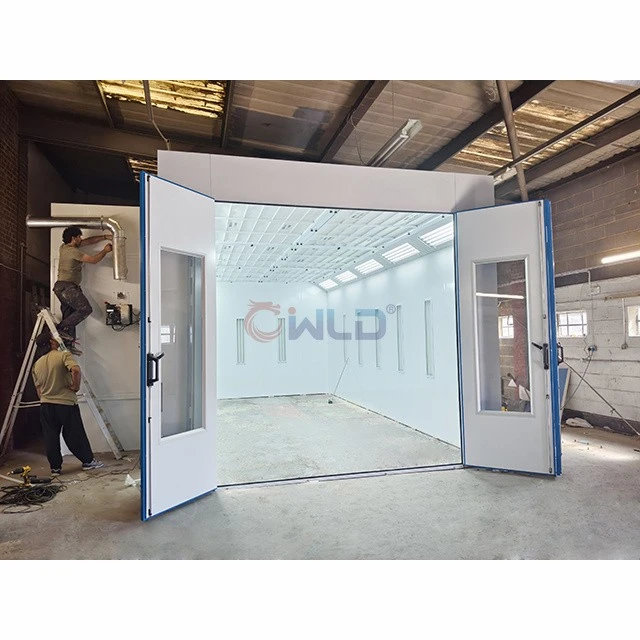

Internal dimensions: L8 × W4 × H3.2 m

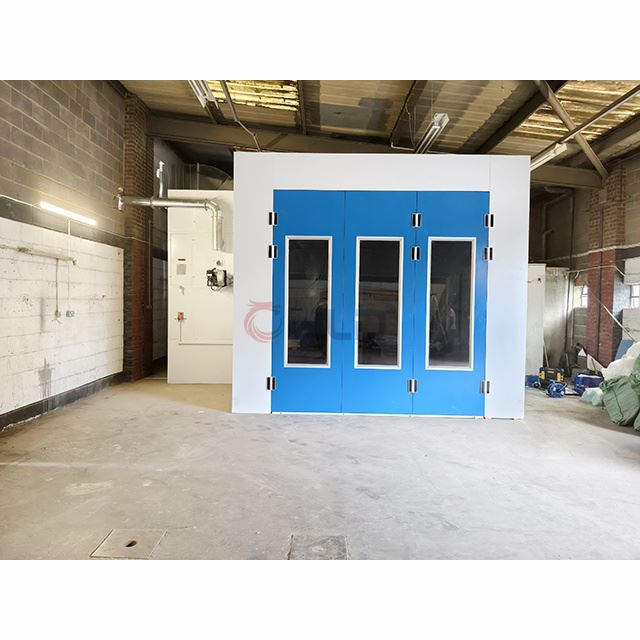

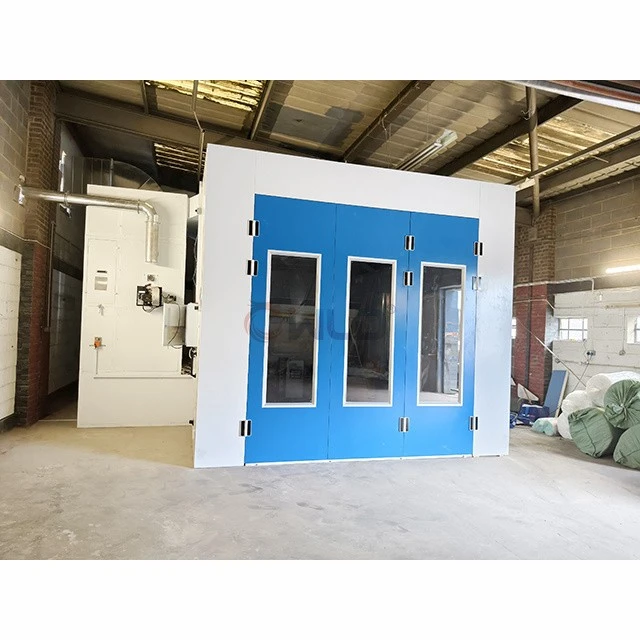

Access doors: Three large blue sheet-metal doors, size L3 m × H3.15 m. High-gloss white door lintel and front vertical panels, 1 small door and 1 footplate.

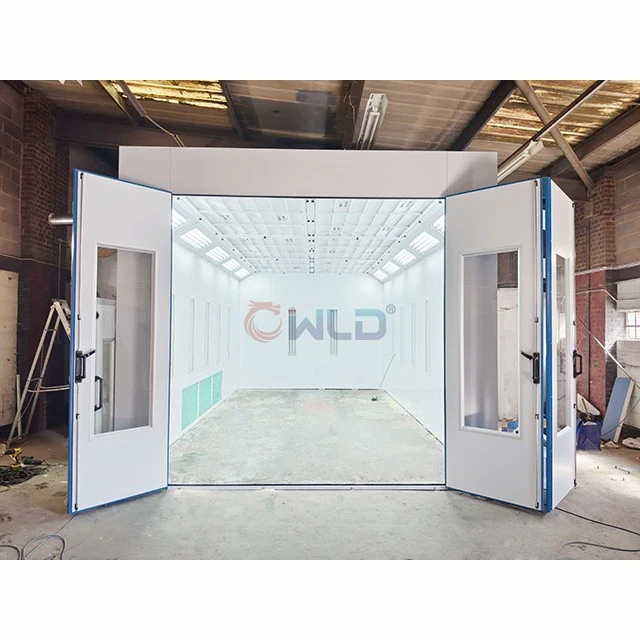

Lighting system: 40 pieces of ceiling LED tubes; 24 pcs of waist LED tubes, 24 W each.

No raised floor basement.

Chamber body: 50 mm thick EPS wall panels, 0.426 mm color-coated steel sheets and galvanized roof panels. Cladding panels for both the chamber body and generator cabinet are high-gloss white.

Fan system: 2 sets of 5.5 KW intake fans and 1 set of 11 KW exhaust fan, equipped with filter cotton.

Air ducts: 4 straight sections plus 2 elbows, including one 90° elbow and one 45° elbow. The exhaust duct is fitted with 1 piece of manual damper to adjust exhaust air volume. Flue pipe with 5 straight sections plus 2 elbows.

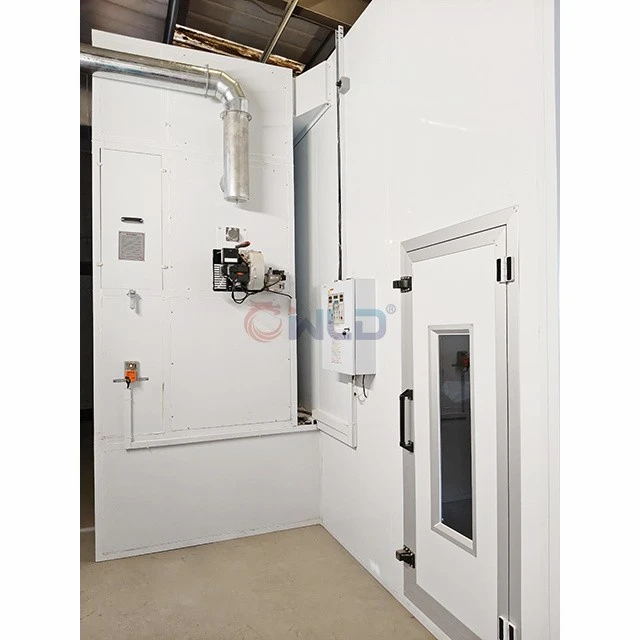

Heating system: 1 set of Riello FS20 natural gas burner with combination gas valve. 1 BELIMO 20 N electric damper for switching between spraying and baking modes.

Electric control cabinet: New-type control cabinet equipped with high and low gas pressure detection and overtemperature alarm device.
