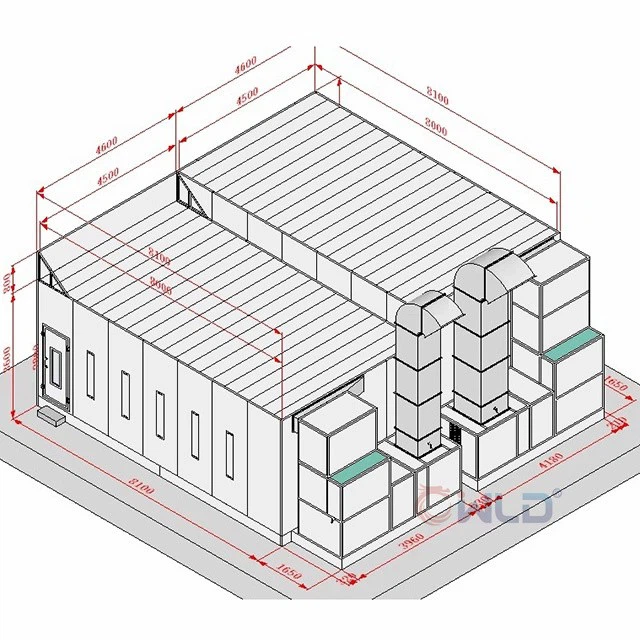

Custom Automotive Paint Spray Booth in Dubai UAE

Custom automotive paint spray booth in Dubai UAE

The first spray booth specifications:

1. Internal dimensions: L8xW4.5xH3.6m.

2. Entrance and exit doors: 3 pieces of yellow enlarged glass doors, size: 3.2x3.6m. 1 pieces of small door.

3. Lighting system: 32 ceiling lights x 24w, 16 waist lights x 24w.

4. Basement: 300mm high basement, full floor grills with filter,inner ramp.

5. Room body: 75mm thick EPS wall panel, 0.476mm color steel plate, galvanized roof panel.

6. Fan system: 2 sets of 5.5KW inlet fans with manual air damper , 1 set of 11KW exhaust fan with fiberglass and activated carbon filter bags.

7. Duct: 3 straight and 2 elbows, including 1 pcs of 90 ° elbow and 1 pcs of 45 ° elbow.

8. Heating system: 12 sets of infrared lamps for heating.

9. Electric control box:  one unit of control box equipped with high and low pressure detection.

The second spray booth specifications:

1. Internal dimensions: L8xW4.5xH2.8m.

2. Entrance and exit doors: 3 pieces of yellow enlarged glass doors, size: 3.2x3.6m. 1 pieces of small door.

3. Lighting system: 32 ceiling lights x 24w, 16 waist lights x 24w.

4. Basement: 300mm high basement, full floor grills with filter,inner ramp.

5. Room body: 75mm thick EPS wall panel, 0.476mm color steel plate, galvanized roof panel.

6. Fan system: 2 sets of 5.5KW inlet fans with manual damper , 1 set of 7.5KW exhaust fan with fiberglass and activated carbon filter bags.

7. Duct: 3 straight and 2 elbows, including 1 pcs of 90 ° elbow and 1 pcs of 45 ° elbow.

8. Heating system: 12 sets of infrared lamps for heating.

9. Electric control box: one unit of control box equipped with high and low pressure detection.
