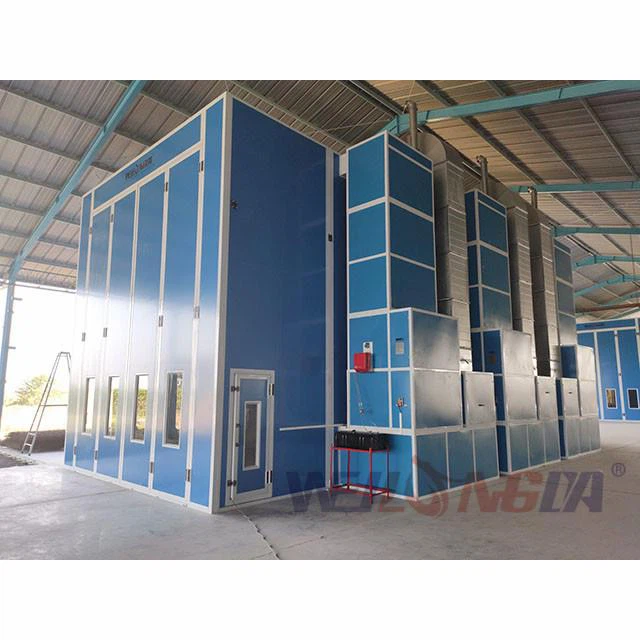

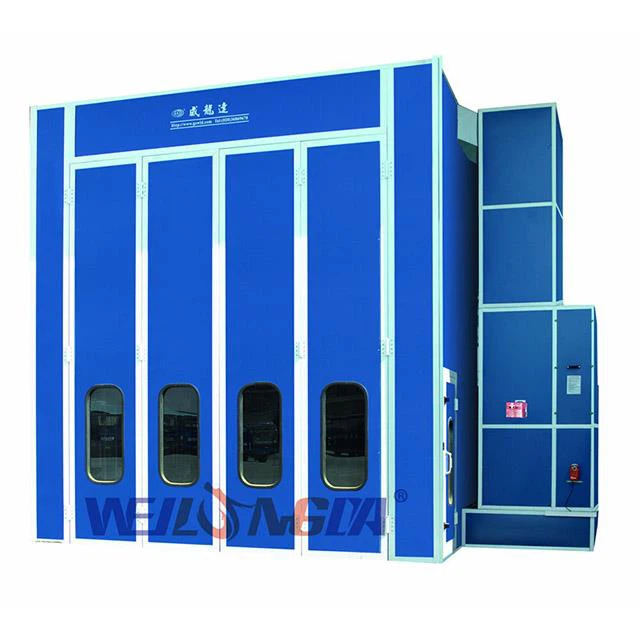

Big Truck Paint Booth

    12m,15m,18m,20m,22m...any sizes can be customized;

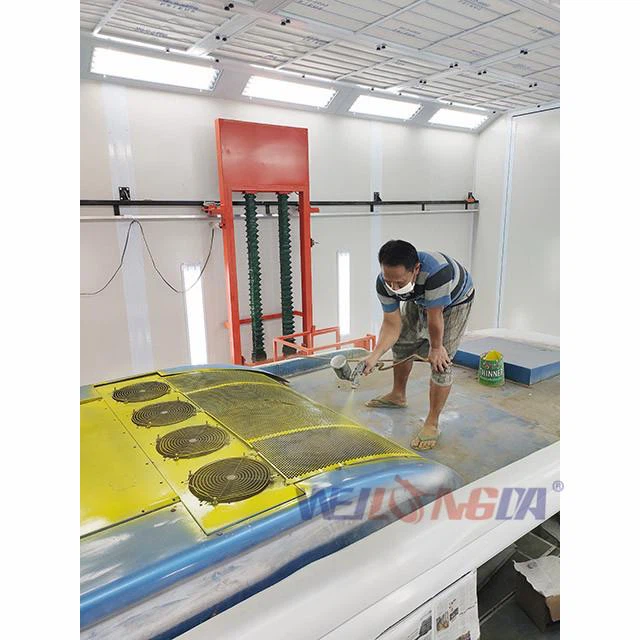

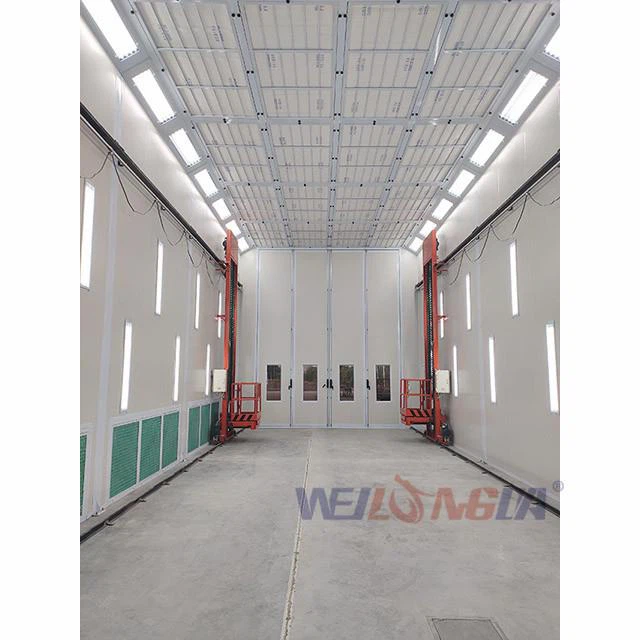

    3D lift in the big spray booth is optional.

    Air exhaust from two sides of spray room or pit are optional;

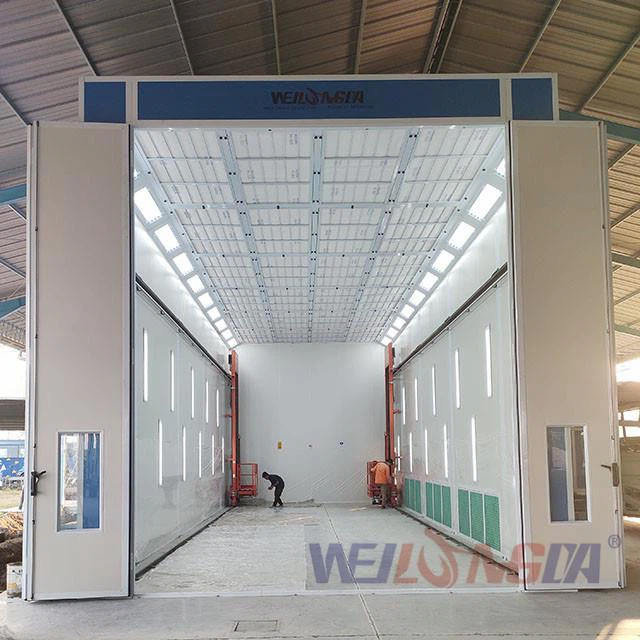

    Drive through type door, rolling door and folding door are optional.

    Air generation system on the top of spray room is optional.

WLD15000 Bus/Truck Paint Booth Configuration:

Wallboard: Sandwich style EPS (epispastics polystyrene) 75mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.

    Door: 4 pcs of front doors with special rigid frame. Size: 4000(w) x 4800(h). 2 pc of emergency door.

Air Intake System (3sets): Each set consists of 2x4kw intake fan. Total 6 units of 4kw intake fan. BELIMO 20N electric damper.

Air Exhaust System (3set): Each set consists of 1x5.5kw exhaust fan. Total 3 units of 5.5kw exhaust fan. Multi-layer fiberglass filter. Exhaust air from basement or two sides of wallboard.

Heating System (3set): Each set consists of 1 unit Italy Riello G20 diesel burner 200000Kcal/h. Total 3units of burners,600000Kcal/h.The heat exchanger is made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency.

Lighting System: Ceiling light has 18units x 4pcs of 36w lamps. Side light has 22 units x 2pcs of 36 w lamps. Total 116 pcs of 36 W lamps. 900 Lux.

Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.

Drawing:

Video: 3D Man Lift Optional:
