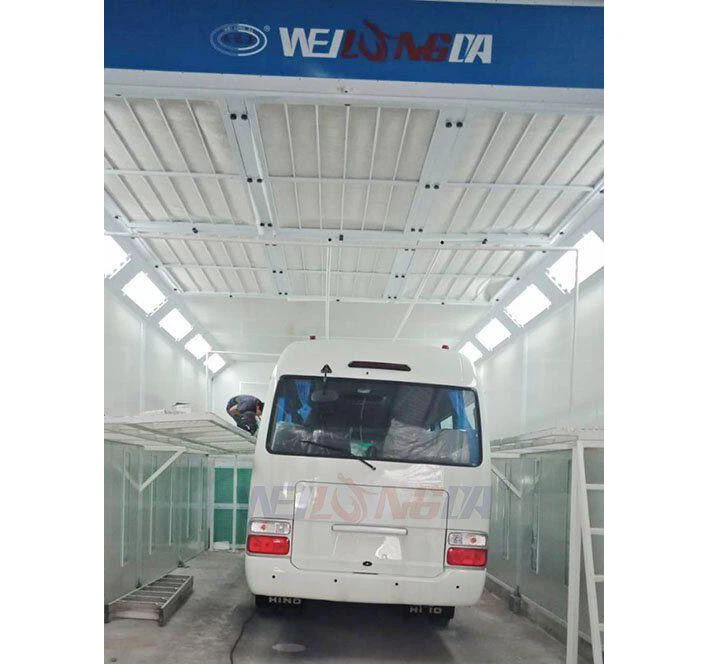

Bus Paint Booth In Thailand
Bus Paint Booth in Thailand
1. Due to the limit space of the customer's site, width≤5200mm, leave 500mm for sidewalk; height≤4100mm.
2. Internal dimension: L9850×W4550×H3550(mm), 75mm EPS wall panel, 0.476mm colorful steel skin board.
3. 4pcs of steel columns for each side of the paint booth room body, totally 8pcs.The customer will weld this folding pedal for painting the ceiling of the bus.
4. 4-folder type of front door with aluminum viewing window, size: W3700×H3500(mm);1pc of exit door, size: W800×H2000(mm) with aluminum viewing window,(it must be set at the same side of the fan unit, because of the limit space of the customer's site).
5. The fan unit is set at the rear, the base outlet is required to be 1600mm height.
6. 2 sets of 4KW centrifugal intake fans, air flow is 24000m³/h; 1 set of 5.5KW centrifugal exhaust fan, air flow is 15000m³/h. BELIMO 20N electric damper for switching the painting mode to baking mode. Exhaust air pipe will be equipped with manual damper for air control.
7. Italy Riello G20 diesel burner, 200000Kcal/h.
8. Ceiling light has 36pcs of LED lamp tubes; side light has 32pcs of LED lamp tubes.
9. Control box is equipped with safety device and emergency stop.
The customer also buy additional equipment:
1. Filters for spare:
1.1 ceiling filter
1.2 floor filter
1.3 pre-filter
2. Safety Ladder:
3. Tire Changer WLD-528R
- Level-less tire changer, size range 12''-24''
- Specialized designed for: normal car, SUV, race car, van, run-flat tyre, light truck
- Operation faster/easy/full functional
- Lever-less: the united pneumatic mounting heads to hook up/down the tyre edge
- Laborsaving: use the less manpower for faster mounting/demounting the tyre.
- Stronger Steel Cabinet and the help arms upgraded.
4. Wheel Balancer WLD-R-262
- Popular sales item
- The LCD screen display, with 3D view measurement by automatically
Container Loading
____________________________________________________________________________________________________
END
Internal Size | L9850×W4550×H3550(mm) | Air Flow | 24000m³/h |
External Size | L11450×W4700×H4050(mm) | Air Speed | 0.3-0.5m/s |
Front Door Size | W3700×H3500(mm) | Fuel Consumption | 4-5kg/vehicle |
Total Power | 15KW | Vehicle Suited | Coaster Bus |
Wallboard | 75mm EPS, 0.476mm colorful steel skin board with 8pcs of steel posts. | ||
Roof Panel | Galvanized steel roof panel and 75mm EPS wallboard. | ||
Basement | No basement, sucking from rear wallboards. | ||
Front Door | 4-folder type, size: W3700×H3500(mm) with 4 pieces of viewing windows. | ||
Worker Door | 1 piece of worker door, size: W800×H2000(mm) with 1 piece of viewing window. | ||
Fan | 2 sets of 4KW centrifugal intake fans, air flow is 24000m³/h. 1 set of 5.5KW centrifugal exhaust fan. Our motor fans are introduced from Siemens technology, supply large air flow to the working environment at low noise. | ||
Air Pipe | Made of galvanized steel sheet, consist of 4 pieces of straight pipes and 1 piece of elbow. | ||
Burner | Italy Riello G20 diesel burner, 200000Kcal/h. The heating time is 5-7min(20℃~60℃), maximum temperature at 80℃, fuel consumption is 4-5kg/vehicle. | ||
Heat Exchanger | Made of 1.5mm thickness stainless steel which feature more heat dissipating surface, better heat exchange and better burner efficiency. The heat exchange rate can reach 85%. | ||
Air Purification | Dual filtering structure, the primary filter can capture granules larger than 10μm, ceiling filter captures granules bigger than 5μm. The air cleanliness in the working environment can reach 98%. | ||
Control Box | Micro-soft control panel, use high quality electric compoents, the temperature and the drying time are accurately shown, equipped with overheat, overload & short-circuited protected, safe and realiable. | ||
Damper | BELIMO 20N electric damper. | ||
Lighting System | Ceiling light has 12 units × 3 pieces = 36 pieces of LED lamp tubes, side light has 16 units×2 pieces = 32 pieces of LED lamp tubes, totally 68 pieces of LED lamp tubes. | ||
