Customized Spray Booth With Rolling Door And Frequency Converter

If you are interested in the customized spray booth with rolling door and frequency converter, please be free to wholesale the quality and durable equipment made in China with our factory. We are one of the leading and professional spray paint booth manufacturers and suppliers in China. We are always at your service.

Customized Spray Booth With Rolling Door And Frequency Converter

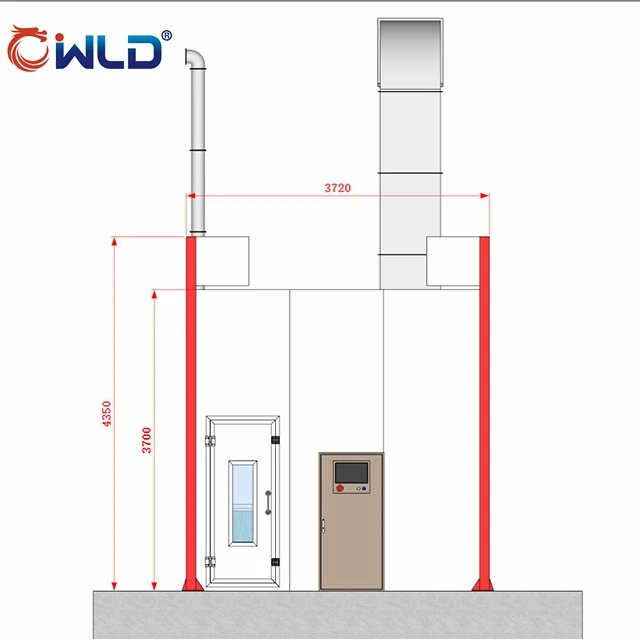

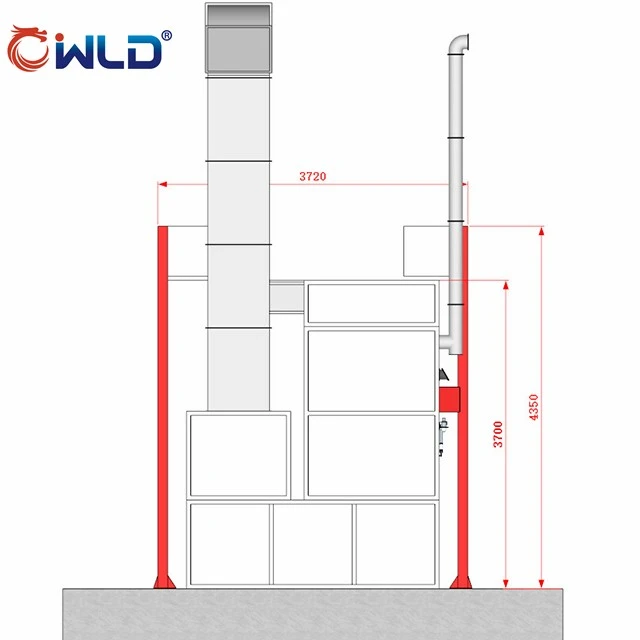

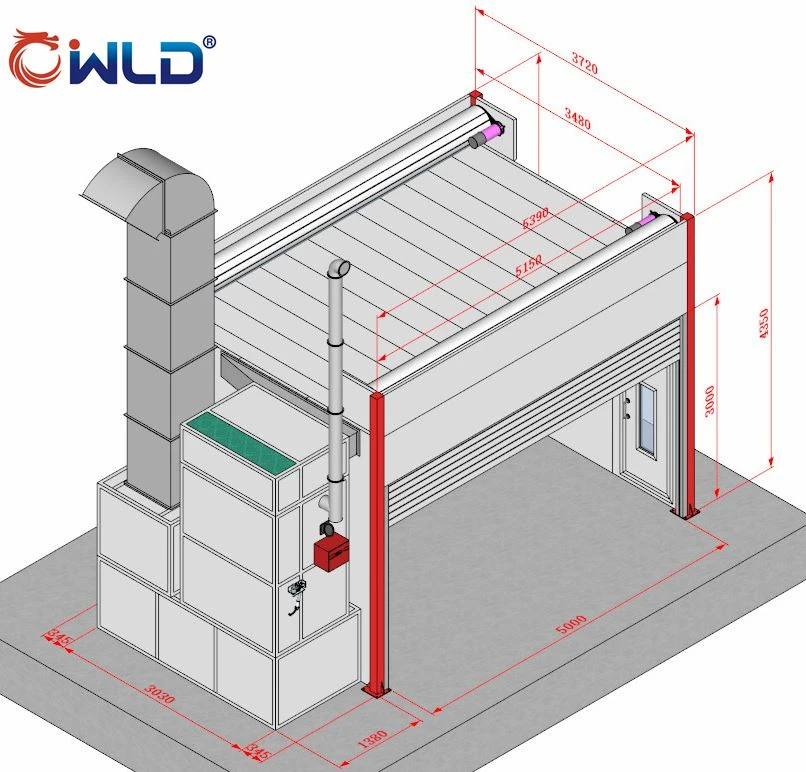

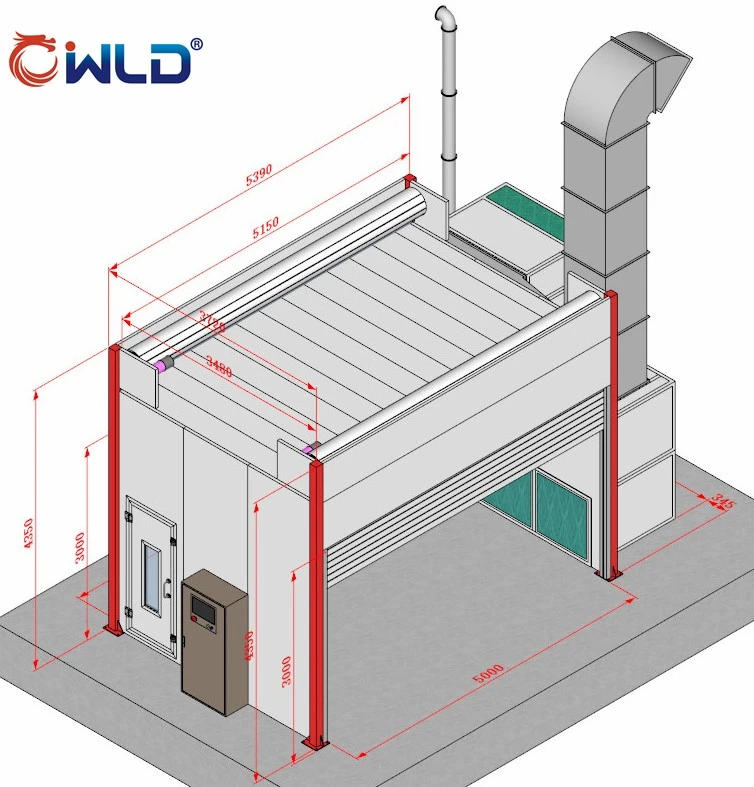

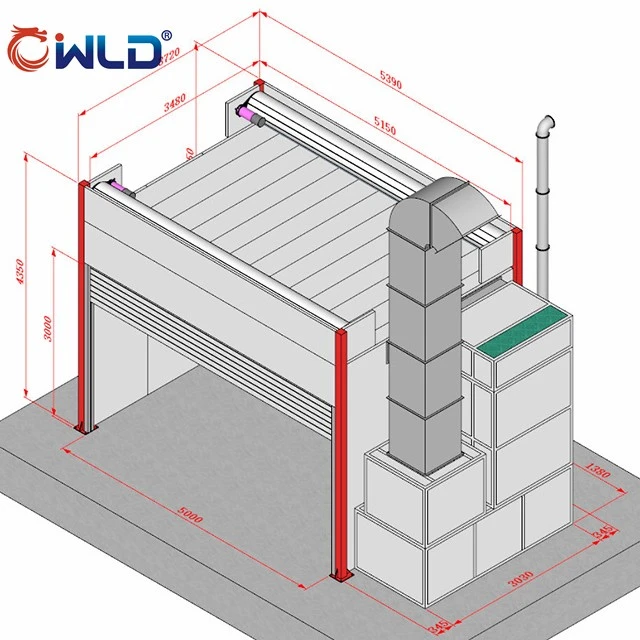

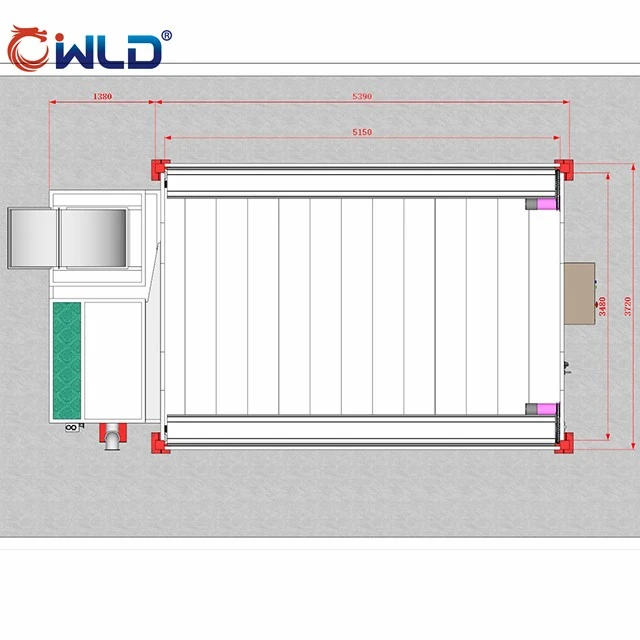

1.Internal dimensions: L5150 × W3480 × H3250 mm.

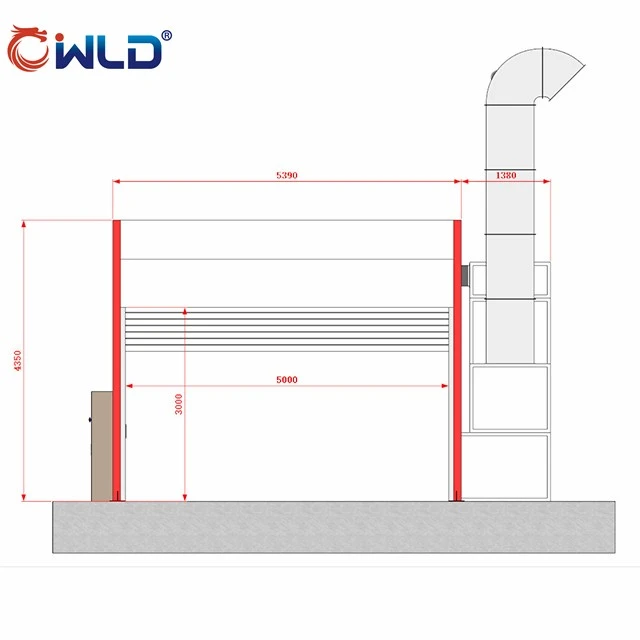

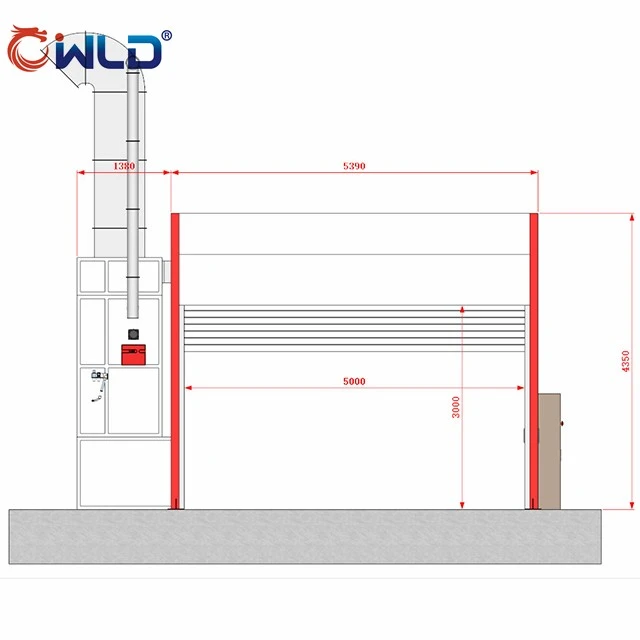

2.Access doors: 2 sets of roller shutters, each sized W5000 × H3000 mm; 1 small access door sized W800 × H2000 mm with observation window

3.No floor platform, side exhaust design.

4.Booth wall panels: 50 mm EPS sandwich panels clad with 0.476 mm color steel sheets; galvanized steel ceiling. All cladding panels for the booth and heating cabinet are high-gloss white.

5.Fan system: One set of 5.5 KW double-inlet supply fan (equipped with frequency converter); One set of 5.5 KW double-inlet exhaust fan (equipped with frequency converter) fitted with flat filter cotton.

6.Air duct assembly: 1 manual air damper, 3 straight duct sections, 1 piece of 90° elbow and 1 piece of 45° elbow.

7.Heating system: 1 Riello G20 diesel burner complete with fuel tank; pneumatic air damper for switching between spraying and baking modes.

8.Electric control cabinet: New-type electrical control box; supply and exhaust fans fitted with Mitsubishi inverters, equipped with high/low air pressure detection and over-temperature alarm devices.
