Paint Spray Booth For Sale Italy

1. Inner dimensions: 11m.
2. 50mm thick rock wool wallboard, colorful steel plate, galvanized roof.
3. Three sets of sheet metal doors with four rows of aluminum alloy hinges, Size: 3500x3000mm.A set of front door (red), one
One set of side door (red), one set of middle door (white), aluminum alloy large. Observation window.Each set of doors is equipped with a pressure lock, for a total of three sets. A hole (60W x60H mm) should be left in the horizontal version of the door head for the conveyor chain of guests to pass through.

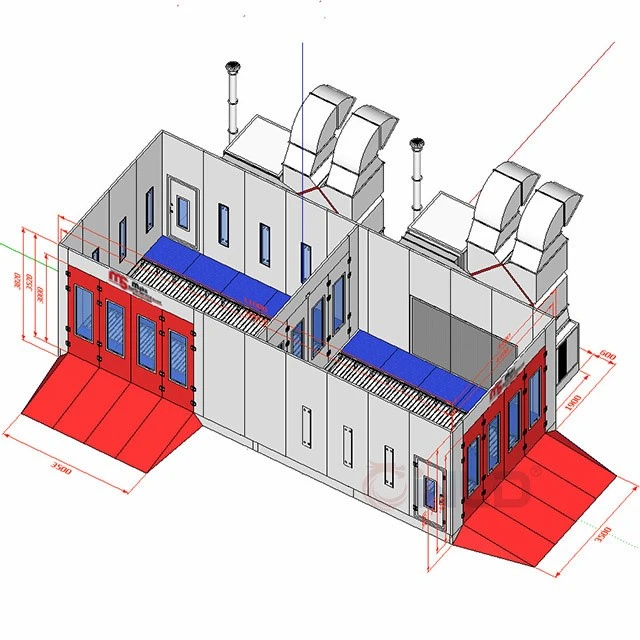

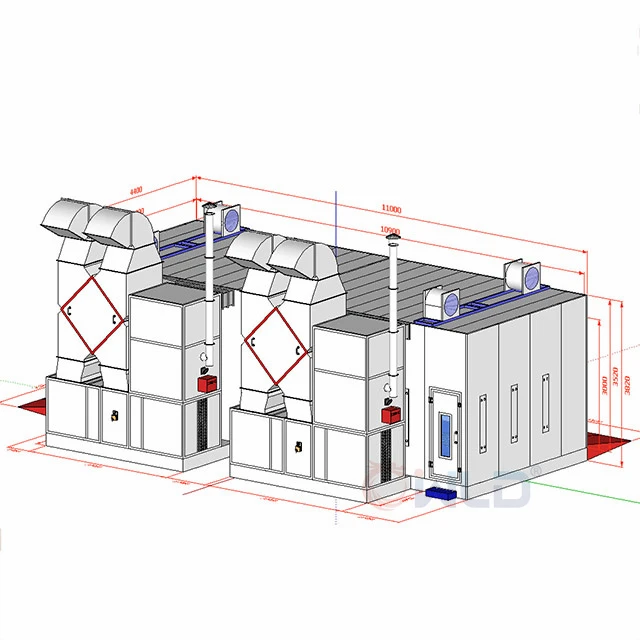

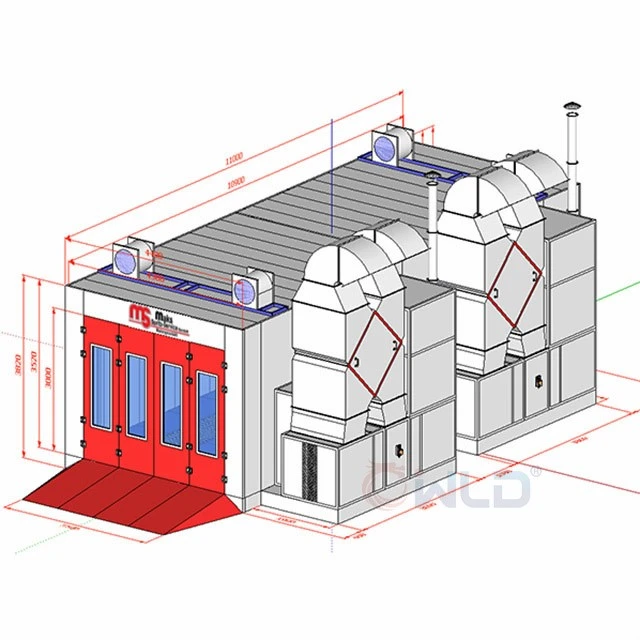

4. Two sets of small doors, please refer to the design drawing for the location of the small doors.
5. Two sets of internal circulation air cabinets, 1X11KW external inlet fan with white filter bag, 1X7.5KW external exhaust fan with black activated carbon filter bag. With thermal energy recovery system.The fan cabinet board should be made into a sound-absorbing board.(When placing the display cabinets, it is important to avoid the pillars in the guest area).
6. 60 air nozzles are arranged on both sides, with 4 x 2.2kw blowers.
7. The front part of the barn has a 3Wx2Hx0.5m, double-layer filtration system, with the first layer being paper filtration and the second layer being glass fiber cotton filtration.The exhaust fan in the first section is shared, with independent control through a damper.Together with the generating cabinet, the overall width cannot exceed 1900mm.
8. 300mm high dusting platform, two rows of floor grilles, three rows of decorative plates, with cotton filter, red full slope (with side slope).
9. Two RG5S diesel burners (please note that the burner port and the furnace port should match), European double-layer large furnace, with observation explosion-proof holes.
10. 56 flat-top lights x 16W, 32 lower lights factory-installed and packaged, compliant with IP55 standards.
11. Imported electric air door with emergency stop switch.0.8mm thick galvanized sheet for the inlet and outlet ducts, each with 4 straight and 2 bent sections.
12. Imported touch screen control, imported frequency converter, barometer, humidity sensor, hour meter and Schneider control components, PLC control system, with high temperature alarm device.The two rooms can be controlled separately.There should be a master switch (you can turn off the power without opening the electric control box, you can turn off the power outside)
