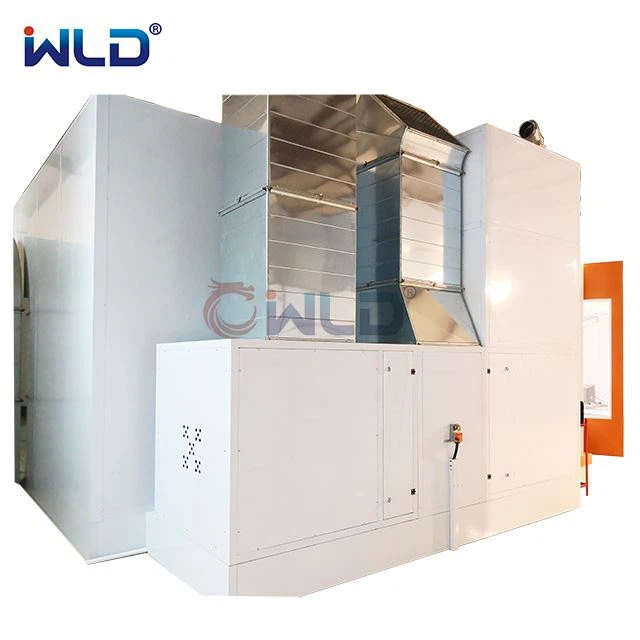

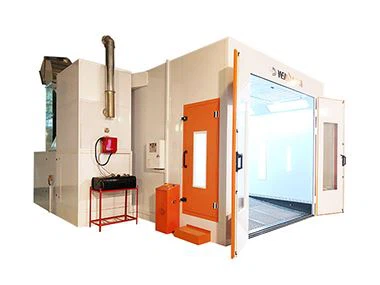

European Standard Paint Booth For Sale

We can change the heating system from diesel burner in the paint booth to Natural gas burner or LPG gas burner. We can add full grids with inner lifter and penumatic ramp for you also.

1. Full Grids And Inner Car Lifter For Spray Booth Optional(Video):

This scissor lift is designed specially for spraying/baking booth. The four support arms are used to lift cars and they can be pulled back to the rims of platform and stored in the basement of spraying/baking booth. It's more economic, smart and space saving than 3D lift and post lift.

Model No: WLD-XJ3.0
Lifting Capacity: 3000kgs,
Lifting Height: 1300mm
Platform Length: 2280mm
Platform Width: 680mm
Height after pulling back: 300mm
Power: 380V/3KW, 50Hz; 220V/60Hz/3Phase
Air pressure: 0.4-0.6Mpa

 2. Full Grids And Inner Penumatic Ramp For Spray Booth Optional(Video).

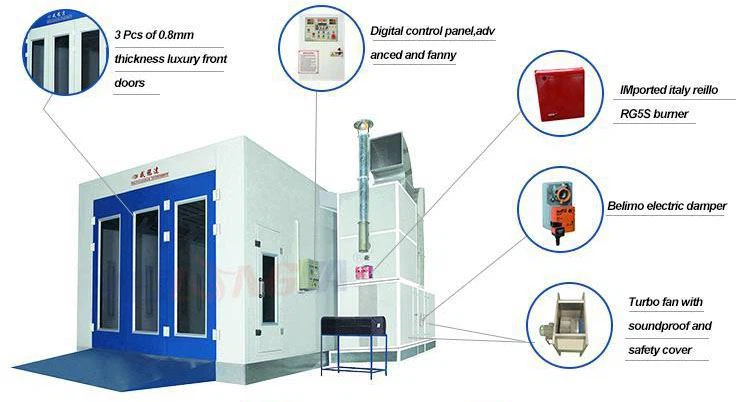

European Standard Paint Booth For Sale Specifications:

Wallboard: Sandwich style EPS 50mm thickness(rock wool and PU for option). Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.

Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. Full ramps.

Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door. Watching window with aluminum frame.

Air Circulation System: 1 x 7.5kw direct drive intake fan, 1x5.5kw direct drive exhaust fan. BELIMO 20N electric damper.

Burner: Italy RielloRG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60.C). Max. temperature

at 80.C. Fuel consumption is 5-6kg/vehicle.

Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.

Lighting System: Ceiling light has 32 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps.

Air Purification: Dual filtering structure. The primary filter is M pattern nonwoven filter bags. It can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.

Pollution Control System: Special configure with M pattern Active Carbon pocket Filter System.

We have been manufacturing spray booth since 2000. Customized spray painting booth is available,such as semi-downdraft,side downdraft and cross downdraft paint booth etc. Welcome to contact us by Email: gzwld@gzwld.com or Cell/Whatsapp:8613570138590.
