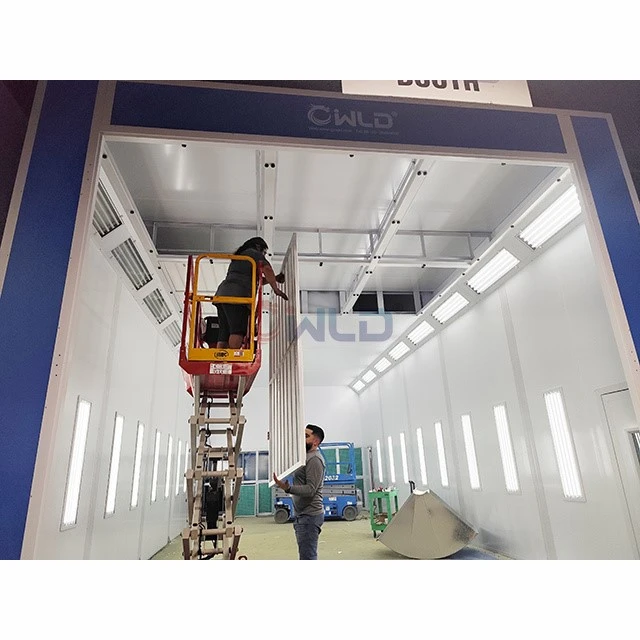

Big Semi Draft Paint Spray Booth Installed In America

If you are interested in the big semi draft paint spray booth installed in america, please be free to wholesale the quality and durable equipment made in China with our factory. We are one of the leading and professional spray paint booth manufacturers and suppliers in China. We are always at your service.

Internal dimension: L12.5 × W5.5 × H4.2 m.

Main doors: Four blue main doors, size: W4.5 × H4.15 m; blue door lintel and front vertical panels; two blue access doors.

Lighting system: 16 sets of ceiling lights × 4 pcs, total 64 pcs × 24 W; 14 sets of side lights × 4 pcs, total 48 pcs × 24 W.

No floor pit, rear-row layout.

Booth enclosure: 75 mm thick EPS wall panels, 0.476 mm blue color steel sheets. The front section is equipped with air plenum; wall panels serve as roof panels for both front and rear sections. Both booth enclosure and generator cabinet cladding are blue; the booth is supported by upright columns.

Fan system (two units): 2 sets of 11 kW external supply-air fans fitted with white filter bags; 2 sets of 11 kW exhaust-air fans fitted with black activated-carbon filter bags. Fans for both generator cabinets are equipped with Mitsubishi inverters. Motors of all four fans shall have US CSA certification. Supply-air cabinet is fitted with 2 pneumatic dampers. Fans shall keep running during painting baking to ensure even temperature inside the booth.

Air duct (two sets): Supply-air duct and exhaust-air duct shall follow drawings (exhaust-air duct fitted with 2 pneumatic dampers). Top air duct shall also be made per drawings.

Heating system: Total 18 sets of infrared heating lamp boxes, 3 infrared lamp tubes per set. Additional 15 infrared lamp tubes supplied as spares.

Electric control box: Same digital control touch-screen as exhibition-hall model. Supply & exhaust fans with Mitsubishi inverters; high/low air-pressure detection; voltage, current & frequency meters; combustible-gas detection device; filter-media replacement reminder function; auto-light-on upon small-door opening; energy-saving button inside booth.

Inside booth: 2 units of red 3D scissor lift (cable-chain type lift), motors marked with CE logo.
