Manual Powder Coating Spray Booth And Curing Oven With Conveyor System

If you are interested in the manual powder coating spray booth and curing oven with conveyor system, please be free to wholesale the quality and durable equipment made in China with our factory. We are one of the leading and professional spray paint booth manufacturers and suppliers in China. We are always at your service.

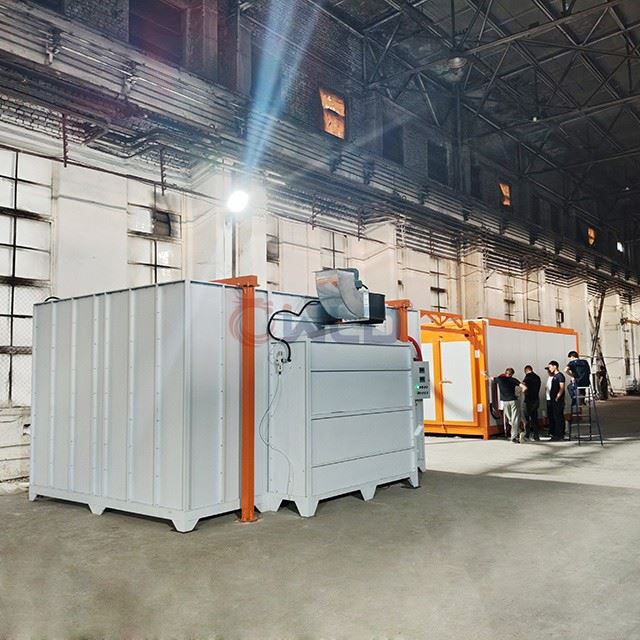

Manual powder coating booth+curing oven+conveyor

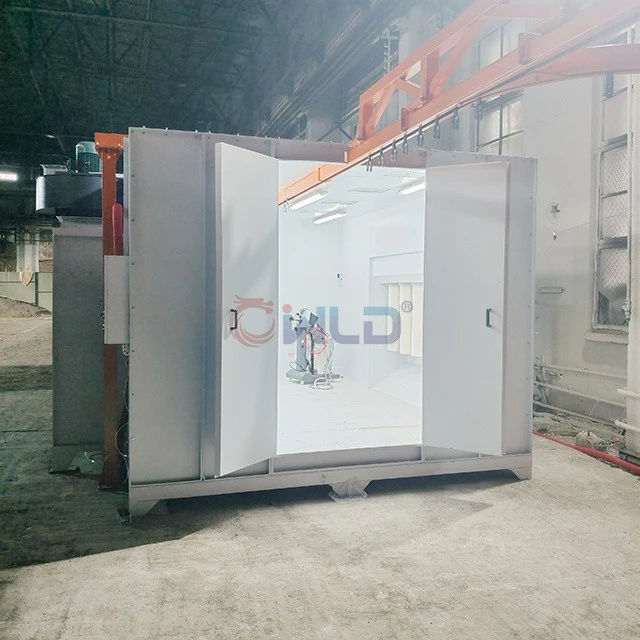

1.Powder coating booth.

1.1. Dimensions: L*W*H=5000*3200*2750mm (subject to final confirmed drawings)

1.2. Wall panels: Galvanized steel plate 1.2mm thickness, with powder-coating treatment.

1.3. Filtration: Total of 12 sets of membrane filter elements, quick-release type (6 sets on each side, including reverse blow system)

1.4. Fan: 7.5kw,2 sets

1.5. Base: 5# square channel. Top covered with galvanized steel plate which with powder-coating treatment

1.6. Entrance and Exit: 1 set

1.7. Lighting: LED light.

1.8.Electricity control and air system:

1.8.1.Fan startup:AC contactor,thermal overload protector.

1.8.2.Impulse back flushing:Electromagnetism impulse valve

1.8.3.Air pressure adjustment:pressure reducing valve

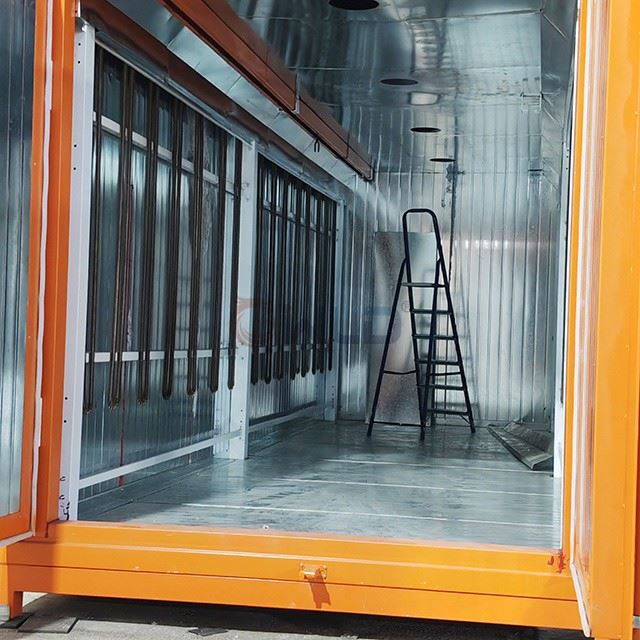

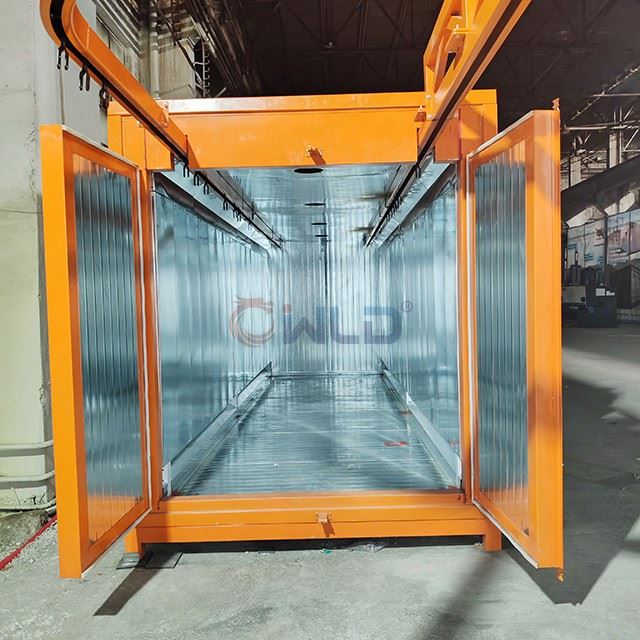

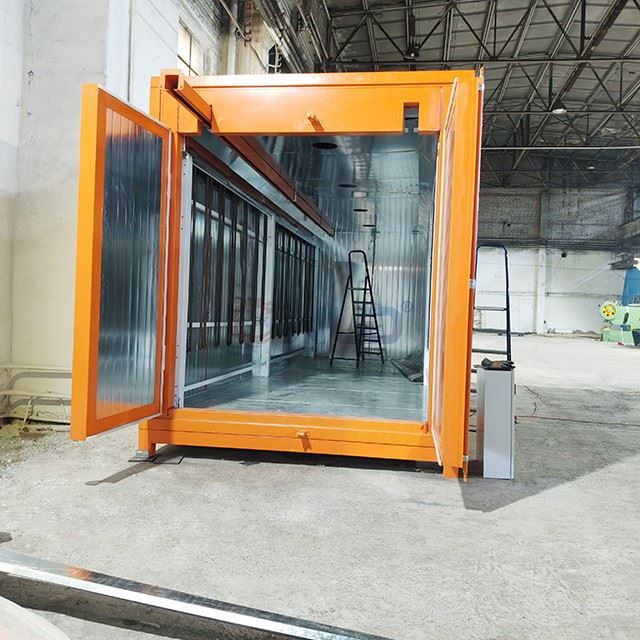

2.Curing oven

2.1. Dimensions: L*W*H=7000*2300*2800mm (subject to final confirmed drawings)

2.2. Wall panel: 100mm rock wool board, with 0.8mm steel plates on both sides, density 100kg/m³

2.3. Heating energy: Electricity, approximately 60kw

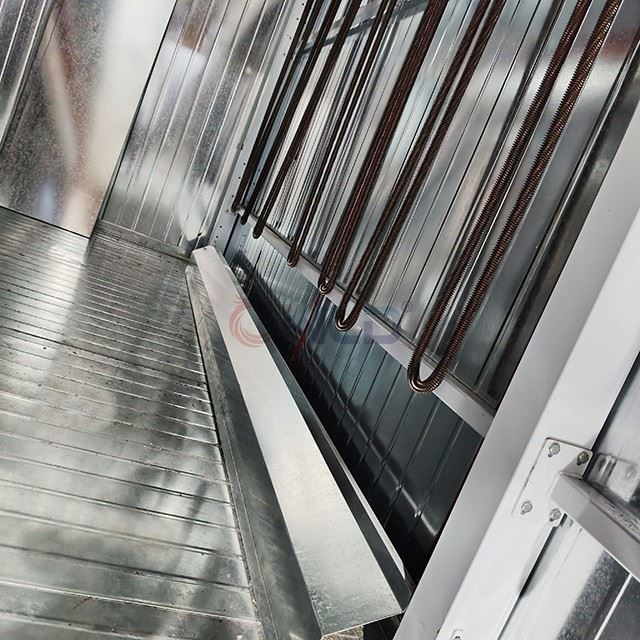

2.4. Heating tube: 304 stainless steel

2.5.Recycling fan:1.5kw long-shaft fan, 4 sets.

2.6. Supply/return air duct: 1.2mm galvanized steel plate material

2.7. Entrance Doors: 2 pcs front doors, 1 set.

2.8.Control Setting

2.8.1.Automatical temperature control system,up and down limit temperature setting, digital display.

2.8.2.This product design accords to international standard,definitely safe when using.

3.Conveyor

3.1. Track: QXG-250, single point bearing capacity 50kg,approximately 34 meters.

3.2.Track reinforcement: square tubes such as 50x100, 50*50, etc

3.3. Lifting equipment: four-wheel trolley, equipped with 30 sets

3.4. Support column: 10 # square tube, with powder coating treatment

4.Manual powder spray gun,2 sets

Manual powder spray gun with integrated remote control function.

Light weight, ergonomically designed, with perfect balance of center of gravity.

It is comfortable to operate and can easily spray in any direction quickly.

The high-performance built-in high-voltage block provides a maximum voltage of 90 kV, enabling fast and efficient charging of any type of powder.

The new generation of nozzles provides perfect powder spray patterns and the superb powder penetration required for spraying complex workpieces.

Manual spray gun includes:

Flat nozzle NF20 kit

Self-cleaning hollow electrode holder

Flat nozzle NF24

6m conductive powder tube Ø 10 [mm]

6m electrode needle for cleaning trachea, Ø 4/6 [mm]

Movable trolley

Stainless steel powder bucket

New powder pump
